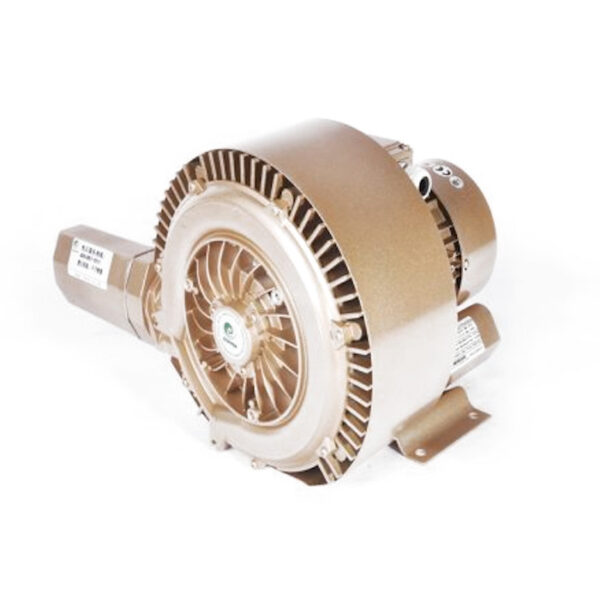

1.5kW Side-Channel Blower, GHBH 002 12 2R4

1.5kW Side-Channel Blower, GHBH 002 12 2R4

R9,984.00 Excl. VAT

Air blower, side channel (regenerative), 1.5 kW double-stage, 220 -240 Volt, single-phase, 150 m3/h max. air flow, -280 mbar max. vacuum, 290 mbar max. pressure

Availability: In Stock SKU: GHBH002122R4

Description

Side channel (regenerative or ring or Vortex) blowers. These blowers are also called regenerative blowers. Side channel blowers function as vacuum pumps or air delivery blowers. They can generate significantly higher pressures than industrial fans. They are used for both vacuum and pressure applications. Regenerative Blower are dynamic compressors, in which a rotating impeller drives the air and creates/maintains the pressure. These blowers run on bearings and have no other wearing parts. They are a good choice for aerating water and so widely used in water applications, such as sewage treatment, aquaponics, hydroponics, aquaculture etc.

See the blower curve and data table. The maximum pressure (or vacuum) is the sum of all pressure requirements: water depth, pipe distance, pipe diameter, air diffuser system design, bends, valves and altitude..

Additional information

Weight 35 kg
Dimensions 45 × 45 × 48 cm
Brand

Goorui

Model Number

GHBH002122R4

Rated Voltage

220V-240 AC @50Hz

Rated Power

1.5 kW

Maximum Air Flow

150 m3/h

Maximum Vaccuum

-280 mbar

Maximum Pressure

290 mbar

Stage

2

Phase

1

Sound

66 dB

Regenerative blower specs

Blower Curve Goorui
