BH-4A Portable Multi Gas Detector

Description

BH-4A portable multi-gas detector could detect combustible gas, O2 and other two types toxic gases continuously and simultaneously. It is widely used in the area where explosion-proof is required or toxic gas leaks, like underground channels or mining industry, so as to protect the workers’ life and avoid damage on the relevant equipments.

Features:

*Natural diffusion sampling method and high-sensitivity sensor, with high sensitivity and repeatability.

*32-bit built-in MCU, high reliability and self-adaptation ability.

*Full functions, easy operation.

*Large LCD, more intuitionistic, abundant and clear indication.

*Compact design, easy carrying.

*High strength engineering plastics and compound anti-slippery rubber; high strength, water-proof, dust-proof and explosion-proof.

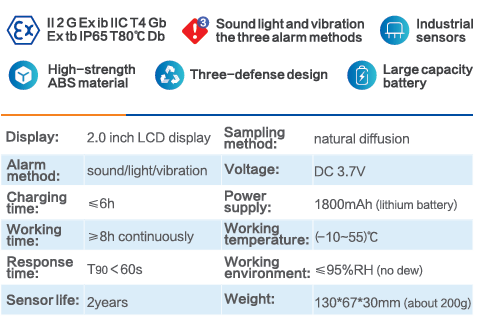

Technical Aspects:

Accuracy: ≦±5% F.S.

Response Time: ≦30s

Indication: LCD displays real-time and system status; LED, audio and vibration alert for gas leakage, fault and low voltage.

Sensor: O2 /H2S / CO: plug-in electrochemical sensor; Combustible gas (LEL): plug-in catalytic combustion sensor.

Working environment: -20℃～50℃, ＜95%RH (no dew)

Alarm Type: low & high alarm, multiple gas alarm, sensor alarm, battery low alarm, prompt tone, automatic shutdown alarm

Backlight: Automatically activated when working in poor lighting environment or the alarm sounding or the button is knobbed down.

Power Source: DC3.7V Li-on battery, 1800mAh

Charging time: 6h~8h

Working time: ≧8h continuously (without alarming)

Gas Sensor Life: 2 years

Explosion-proof grade: Ex ib llC T4 Gb

Weight: Appr. 400g (with battery)

Dimensions: 130mm×67mm×30mm(L × W × H)

Standard accessories: Suit case packaging, 1pc; Charger, 1pc; Calibration cap, 1pc; Communications cable, 1pc; User manual, 1pc.

Additional information

Note: Not all gases and range are listed, if you need more information, please contact us.
